Nine Inch Nails Tension Tour Arena Plots

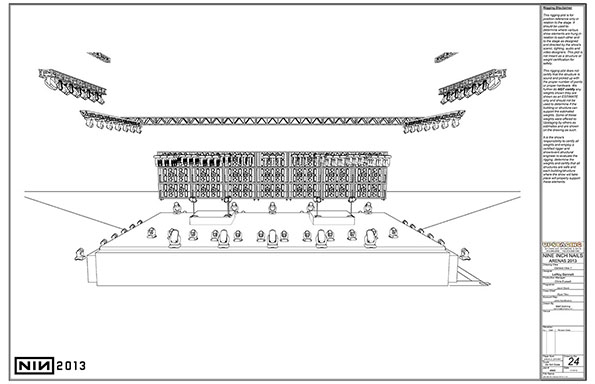

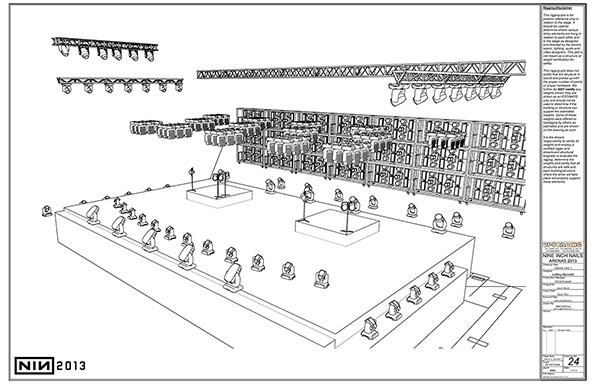

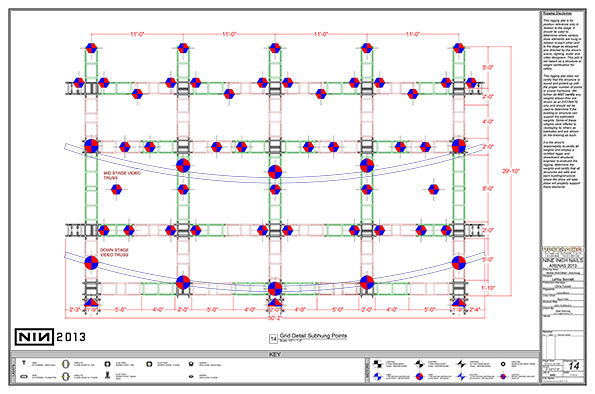

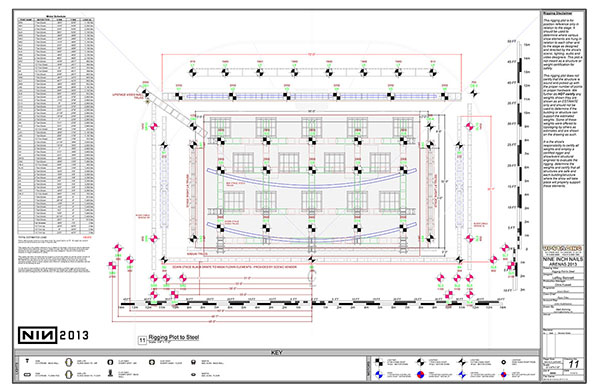

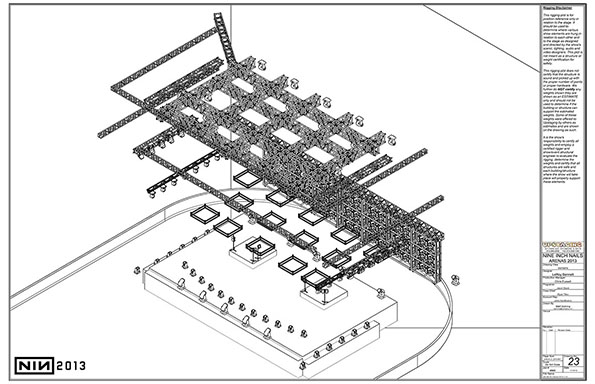

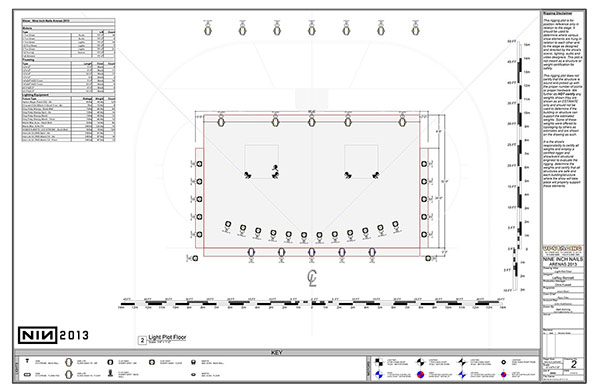

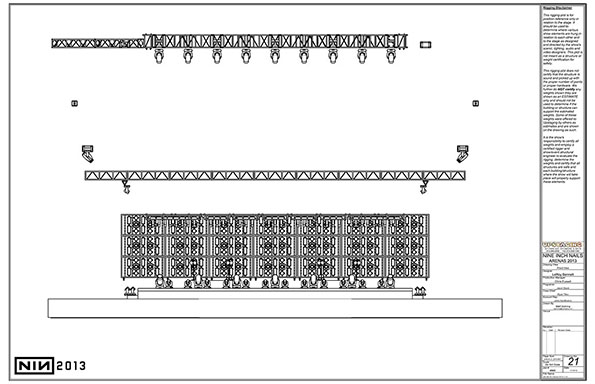

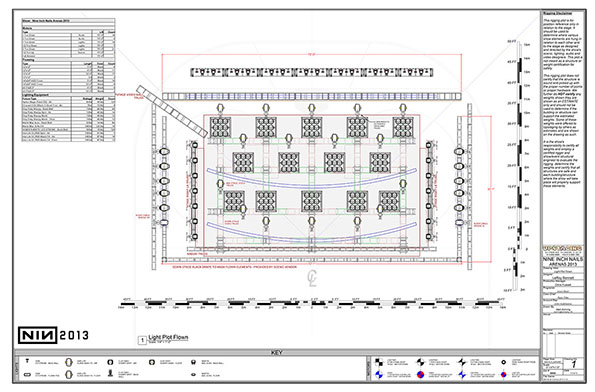

Check out production/lighting designer LeRoy Bennett's lighting plots for Nine Inch Nails' Tension arena tour, with lighting progamming by Jason Baeri, video programming by Loren Barton, lighting direction by Brian Jenkins, and video direction by Morgan Brown. Lighting gear, supplied by Upstaging, includes equipment from Martin Professional, Philips Vari-Lite, Clay Paky, SGM, and Ayrton. Upstaging crew includes: Ryan Tilke (Crew Chief), J.R. Harris, Thomas Walls, Wade Cott, and Brendan Murphy.

Click to enlarge each plot view.

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge
